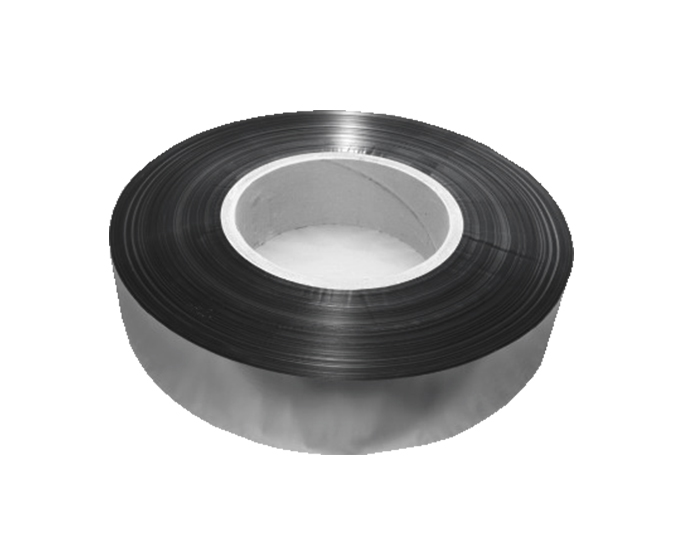

Product introduction
Iron-based amorphous alloy crystal was 80% by 80% Fe and Si, B type metal elements of alloy by rapid solidification process of a kind of amorphous materials, has extremely excellent electromagnetic and physical properties.

Widely used in power distribution transformer, intermediate frequency power supply transformer and inverter, high-power switching power supply, pulse transformer, magnetic amplifier, saturated reactor, PFC inductor, filter inductor products such as core.

Product features

· Has high saturation magnetic induction intensity, reduce the winding number of turns. Reduce the size of our products

· high resistivity and low coercive force, improve the product efficiency

· low loss (about 1/3 of the silicon steel sheet - 1/5), and lowering the temperature rise of the products, improve efficiency

· Products, reduce no-load current, low excitation power, lower noise

· Variable permeability, through different core heat treatment process to meet different application requirements

· good temperature stability, can work at 130 ℃ for a long time

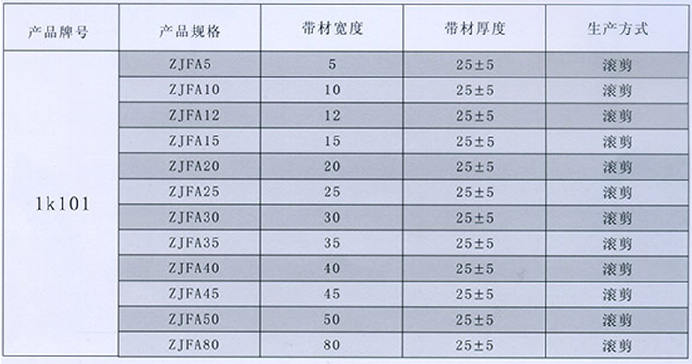

Product performance specification

Product description: what ZJ had (mega crystal) FA (iron base amorphous alloy crystal) 142 (strip width)
